BURGLAR-RESISTANT ROLLER SHUTTERS FOR NEW CONSTRUCTIONS AND FOR RETROSPECTIVE INSTALLATION

Security rolling shutters

Burglar-resistant roller shutters, also known as security rolling shutters, are made from roll-formed special aluminum bars, from extruded aluminum bars and also from steel or stainless steel bars. Unfortunately, some manufacturers often use dubious advertising to present weak standard rolling shutters as "burglar-resistant". Very few of these rolling shutters withstand an attack with a screwdriver, let alone an attempted break-in with the often depicted crowbar.

A roll-formed standard aluminum rolling shutter is not burglar-resistant!

Some standard roller shutter slats, especially in the mini profile, can even be cut very quickly and almost silently with a small pocket knife and pulled out of the guide rails - similar to PVC rolling shutter slats.

Burglar-resistant rolling shutters / security rolling shutters are characterized by 5 features and only the combination of all five together has a burglar-resistant effect:

1. The rolling shutter slats must be made of durable material.
2. The rolling shutter curtain must be secured against being pushed up.
3. The rolling shutter curtain must be secured against being pulled out.
4. The guide rails must be secured against being pried open.
5. The rolling shutter box must be difficult to access.

A remarkable aspect of a security rolling shutter is the additional protection against storm, hail and noise. Due to their material properties, burglar-resistant rolling shutters also have the best properties against these external influences. Our security rolling shutters are RC2 (Oscar and Mini-Oscar) and RC3 (Bullit and Mini-Bullit) certified. As a cost-optimized and also burglar-resistant alternative, we offer our customers our extruded profiles Magnum and Mini-Magnum according to TR 111.

    Oscar RC2

    • Slats 14 x 53 mm
    • every 2nd bar with double screwed locks
    • Sturdy roll-formed aluminum strip, 0.63 mm hardened
    • Rods perforated/unperforated
    • with extremely hard cast resin filling

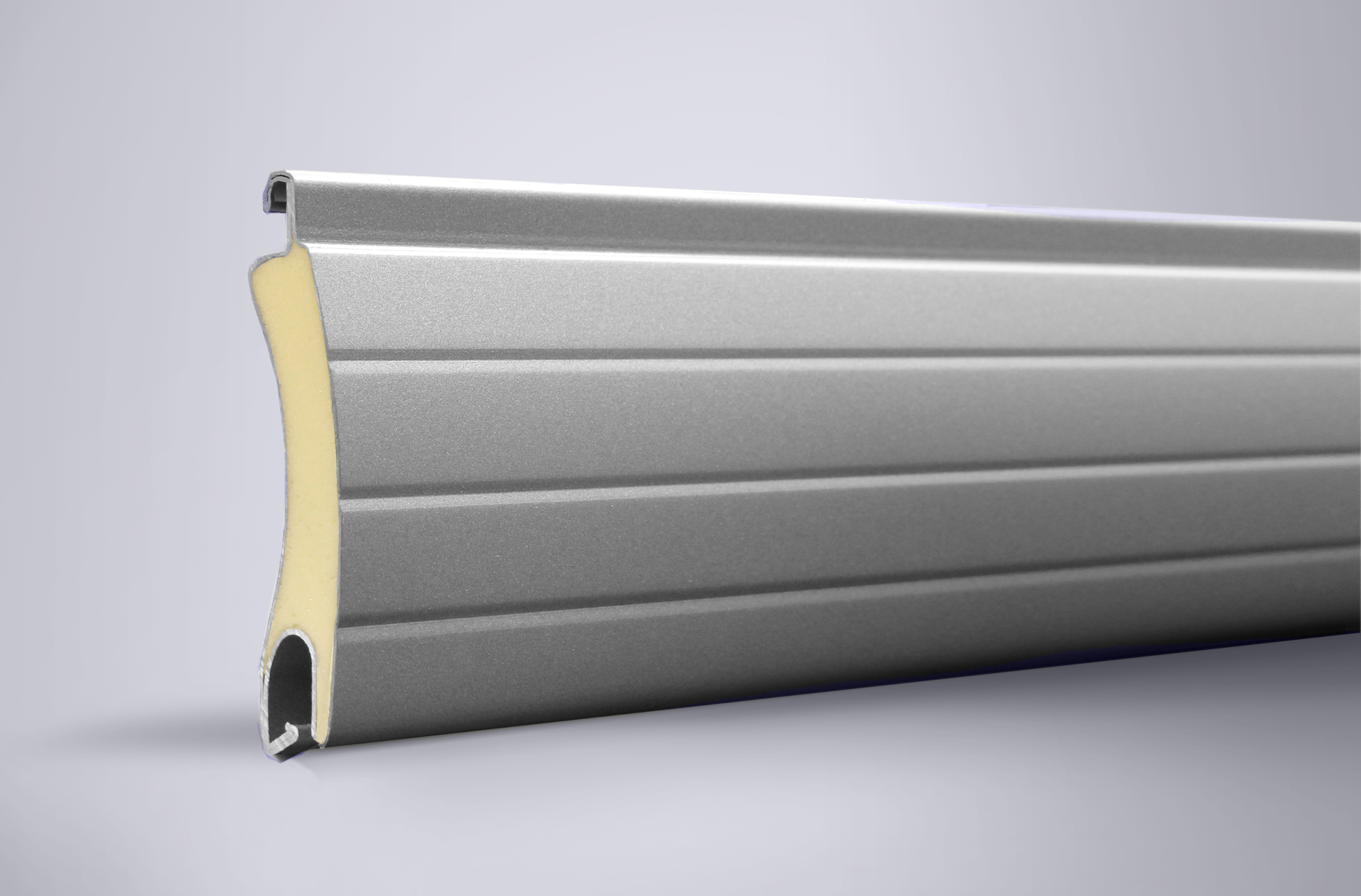

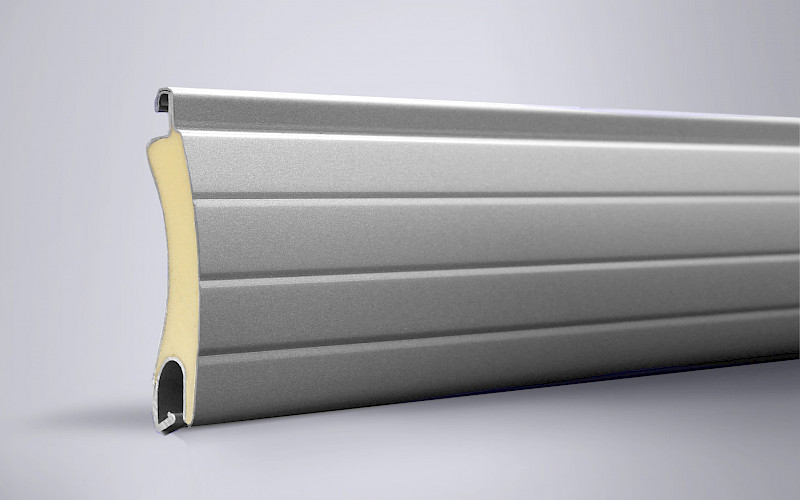

    Oscar is a double-walled, roll-formed, hardened aluminum rolling shutter profile filled with extremely hard cast resin. The trailing edge is additionally equipped with a reinforcement profile made of extruded aluminium. Special suspension profiles are used as anti-lift devices.

    In the certified variant, Oscar is only made from unperforated rods. Perforated and non-perforated rods are used in the standard area to allow ventilation of the room.

    The color of the extruded bottom bar corresponds to the color of the rolling shutter (except for the colors brown and teak). It is also available in a different standard color on request.

    This quality curtain meets all the requirements of a rolling shutter and can be used up to a width of 500 cm without any problems. Oscar is available as a burglar-resistant roller shutter with the appropriate accessories from the i.f.t. Rosenheim tested and certified according to EN 1627 in class RC2 up to a size of 312.5 x 235 cm (shell size).

    Bundle Diameter
    Table bale diameter Oscar

    (In addition to the specified bale diameter, "air" must also be taken into account).

    Armor weight: 10.0 kg/sqm

    Recommended max usage size: 500 x 300 cm

    Colors
    Color table Oscar
    Suitable equipment
    Guide rail 40/28/40
    Guide rail 25/28/25
    Guide rail 53/28/53 S
    Security U-guide rail 60/39,8/60
    Anti-lift profile

    Mini-Oscar RC2

    • Slats 9.5 x 37 mm
    • each rod with double screwed locks (RC2)
    • Sturdy roll-formed aluminum strip, 0.49 mm hardened
    • Rods perforated/unperforated
    • with extremely hard cast resin filling


    Mini-Oscar is a double-walled, roll-formed rolling shutter profile made of hardened aluminum and filled with extremely hard cast resin. The trailing edge is additionally equipped with a reinforcement profile made of extruded aluminium. Special suspension profiles are used as anti-lift devices.

    In the certified variant, Mini-Oscar is only installed in the front-end element and is only made from unperforated rods. Perforated and non-perforated rods are used in the standard area to allow ventilation of the room.

    The color of the extruded bottom bar corresponds to the color of the rolling shutter (except for the colors brown and teak). It is also available in a different standard color on request.

    This quality curtain meets all the requirements of a roller shutter and can be used up to a width of 350 cm without any problems. Mini-Oscar is available as a burglar-resistant rolling shutter with the appropriate accessories from the i.f.t. Rosenheim tested and certified according to EN 1627 in class RC2 up to a size of 209 x 234 cm (shell size).

    Bundle Diameter
    Table bundle diameter Mini-Oscar

    (In addition to the specified bale diameter, "air" must also be taken into account).

    Armor weight: 8.0 kg/sqm

    Recommended max usage size: 350 x 300 cm

    Colors
    Color table Mini-Oscar
    Suitable equipment
    Guide rail 25/22/25
    Guide rail 32/22/32
    Guide rail 68/25/68 N
    Guide rail 68/25/68 S
    Guide rail 68/35/68 RC2
    Anti-lift profile
    Sliding bolt

    Bullit RC3

    • Slats 14 x 53 mm
    • each bar fitted with safety locks
    • roll-formed stainless steel strap, 0.42mm strap thickness
    • bars unperforated
    • with extremely hard cast resin filling


    Bullit RC3 is a security rolling shutter made from double-walled, roll-formed stainless steel profiles with an extremely hard cast resin filling. Each rod is equipped with double-bolted and carbon fiber reinforced safety locks. The trailing edge is additionally equipped with a reinforcement profile made of extruded aluminum, which is filled with a steel core.

    Special suspension profiles are used across the entire width of the rolling shutter to protect against being pushed up. The guide rails are particularly solid and have a bar behind which the safety lock is anchored.

    The rolling shutter is thus optimally protected against being pushed up and pulled out.

    The end bar is equipped with a lower rubber welt.

    Bullit RC3 is available as a burglar-resistant rolling shutter with the appropriate accessories from the i.f.t. Rosenheim up to a size of 312.5 x 235 cm (shell size) tested and certified according to EN 1627.

    Bundle Diameter
    Table bundle diameter Bullit RC3

    (In addition to the specified bale diameter, "air" must also be taken into account).

    Armor weight: 18.0 kg/sqm

    Recommended max usage size: 550 x 300 cm

    Mini-Bullit RC3

    • Slats 9.5 x 37 mm
    • each bar fitted with safety locks
    • roll-formed stainless steel strap, 0.40mm strap thickness
    • bars unperforated
    • with extremely hard cast resin filling

    Mini-Bullit RC3 is a security roller shutter made of double-walled and roll-formed stainless steel profiles with an extremely hard cast resin filling. Each rod is equipped with double-bolted and carbon fiber reinforced safety locks. The trailing edge is additionally equipped with a reinforcement profile made of extruded aluminum, which is filled with a steel core.

    Special suspension profiles are used across the entire width of the roller shutter to protect against being pushed up. The guide rails are particularly solid and have a bar behind which the safety lock is anchored.

    The rolling shutter is thus optimally protected against being pushed up and pulled out.

    The end bar is equipped with a lower rubber welt.

    Bundle diameter
    Table bale diameter Mini-Bullit RC3



    (In addition to the specified bale diameter, "air" must also be taken into account).

    Armor weight: 14.0 kg/sqm

    Recommended max usage size: 400 x 300 cm

    Magnum

    • Slats 13.5 x 55 mm
    • every 2nd bar locked on both sides
    • Sturdy, extruded aluminum rods
    • min. 1+ mm strap thickness
    • IMPORTANT: all sticks unperforated

    Magnum is a double-walled, extruded aluminum roller shutter profile.

    The color of the extruded bottom bar corresponds to the color of the roller shutter (slight color differences are possible). It is also available in a different standard color on request.

    Extruded aluminum roller shutters are very durable and of high quality.
    Magnum can be anodized in all standard colors or coated in all RAL and NCS colors.

    Bundle diameter
    Tabel bundle diameter Magnum

    (In addition to the specified bale diameter, "air" must also be taken into account).

    Armor weight: 8.5 kg/sqm

    Recommended max usage size: 450 x 300 cm

    Colors
    Color table Magnum
    Suitable equipment
    Guide rail 25/19,2/25
    Guide rail 25/28/25
    Guide rail 40/28/40
    60/39,8/60 Security U-profile
    Anti-lift profile

    Mini-Magnum

    • Slats 9 x 44 mm
    • every 2nd bar locked on both sides
    • Sturdy, extruded aluminum rods
    • min. 1+ mm strap thickness
    • IMPORTANT: all sticks unperforated

    Mini-Magnum is an extruded aluminum roller shutter profile.

    The color of the extruded bottom bar corresponds to the color of the roller shutter (slight color differences are possible). It is also available in a different standard color on request.

    Extruded aluminum roller shutters are very durable and of high quality.
    Mini-Magnum can be anodized in all standard colors or coated in all RAL and NCS colors.

    Mini-Magnum is used in front-mounted elements, but also as roller shutters for new buildings.

    Bundle diameter
    Table bale diameter Mini-Magnum



    (In addition to the specified bale diameter, "air" must also be taken into account).

    Armor weight: 6.0 kg/sqm

    Recommended max usage size: 300 x 300 cm

    Colors
    Color table Mini Magnum
    Suitable equipment
    Guide rail 25/22/25
    Guide rail 32/22/32
    Anti-lift profile
